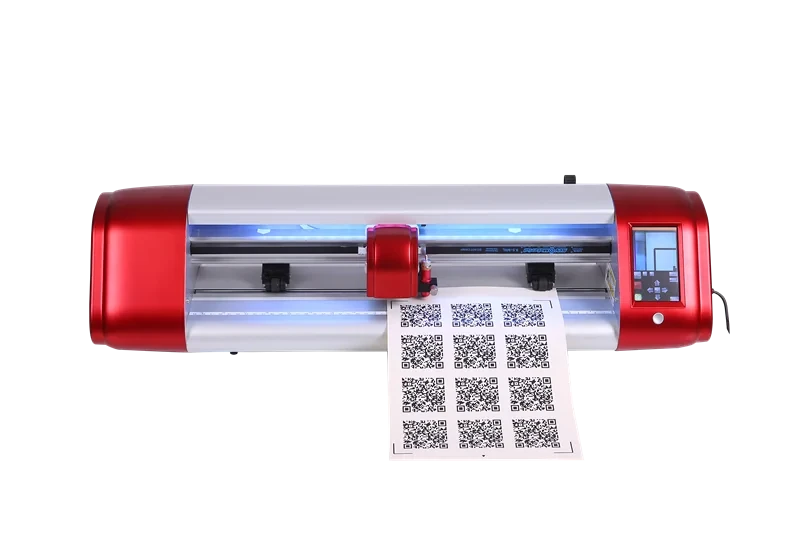

Portable cutting plotter With advanced instrument

Automatically Contour Cutting
Patented Camera Positioning Accurate And Fast
Touch Screen Control
12 Languages Menu Easy To Operate
Multi-Purpose
Option Laser Engrave/Metal Etching
Multi-Interface
Support Wifi, App Connection Support U Disk Output Data Cutting

Model |
SKYCUT C10 |
SKYCUT C16 |
SKYCUT C24 |
|
|
Support automatically contour cutting, cutter can search and deal with mark points automatically by camera. High precision and smart.
4.3" touch screen, high resolution, high definition
Real USB connect, support hot-plug, no USB drivers required.

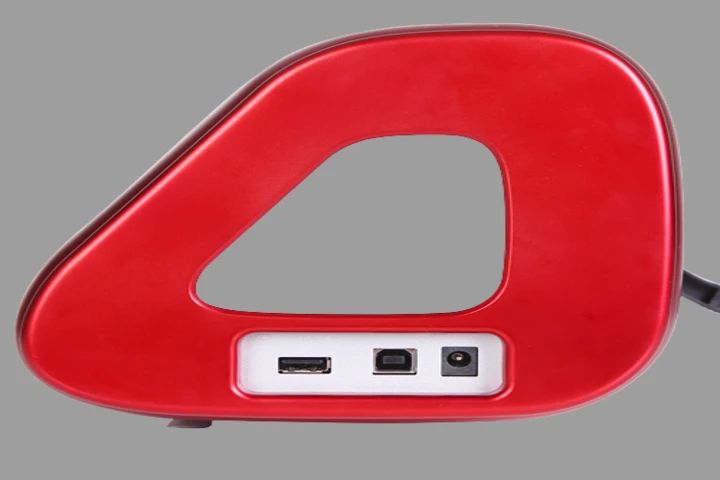

Multi interface available: USB cable, USB flash drive, and WIFI (option)
Remote and one key update: Independent firmware, user can update newest firmware very easy.
APP interface: User can control cutter by phone app
High-speed 32bit M4 arithmetic microprocessor. Stable and high precision cutter, smooth and quiet.
High precision control system and mechanical design. Use high precision steel axes, and independent control system.
Simple and decent outlook design. Aluminum alloy body. Many colors option.
LED light bar, user can change color freely.
Multi languages are available.
Single cutting Head, without WIFI, Support Signmaster and CorelDraw software.
|
|
|
|
|
|
Max media width |
370mm |
500mm |
720mm |
Laser engrave option |
Yes |
Max cutting width |
260mm |
390mm |
610mm |
Scratch engrave |
Yes |
Max contour cutting width |
220mm |
350mm |
570mm |
Motor |
Stepper |
Packing size |
700*320*280mm |
770*320*280mm |
1000*320*380mm |
Processor memory |
128MB |
Gross |
9kg |
11kg |
14kg |
Cutting precision |
+/-0.01mm |
Max force |
|
800g |
|
Repeat precision |
0.082mm |
db values |
|
65 |
|
Max moving speed |
700mm/s |
Number of heads |
|
1 |
|
Max cutting speed |
600mm/s |

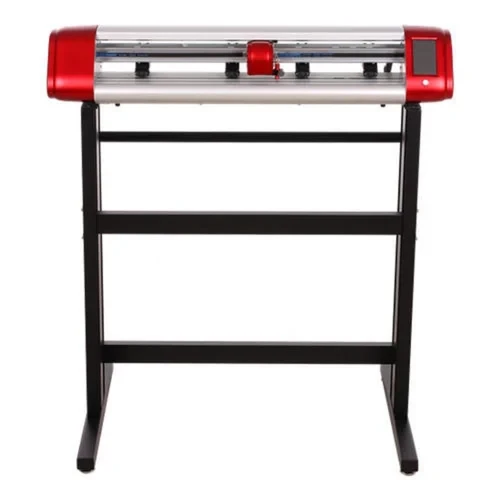

Floor stand |
|
No |
|
Connector interface |
USB flash/WIFI(option)/USBcable |
Auto contour cut |
|
Camera |
|
Power |
<100W |
CorelDRAW and AI directly |
|
Yes |
|
Working environment |
+5°C-+35°C |
Power supply,V/Hz |
|
24V1.5A |
|
|
|
|
